The table below compares the screen layout terminology used in the Meeting Server API, Web Admin Interface and the Cisco Meeting App.

For more information on screen layouts, see this FAQ.

	Terminology used in the:
Screen layout	API	Web Admin Interface	Client
	telepresence	overlay	Speaker large*
	stacked	stack
	speakerOnly	full screen	Speaker only

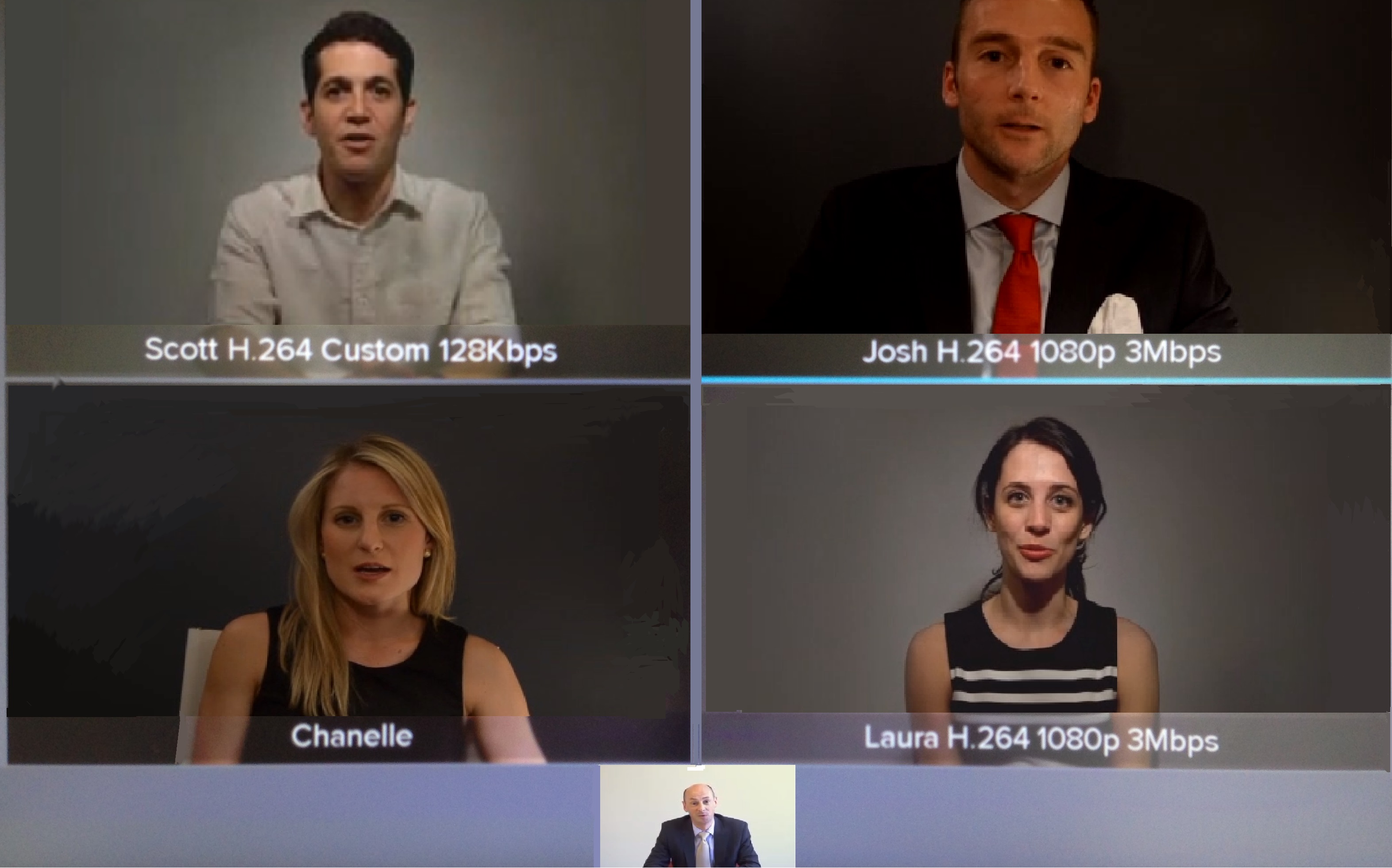

	allEqual	all equal	All equal

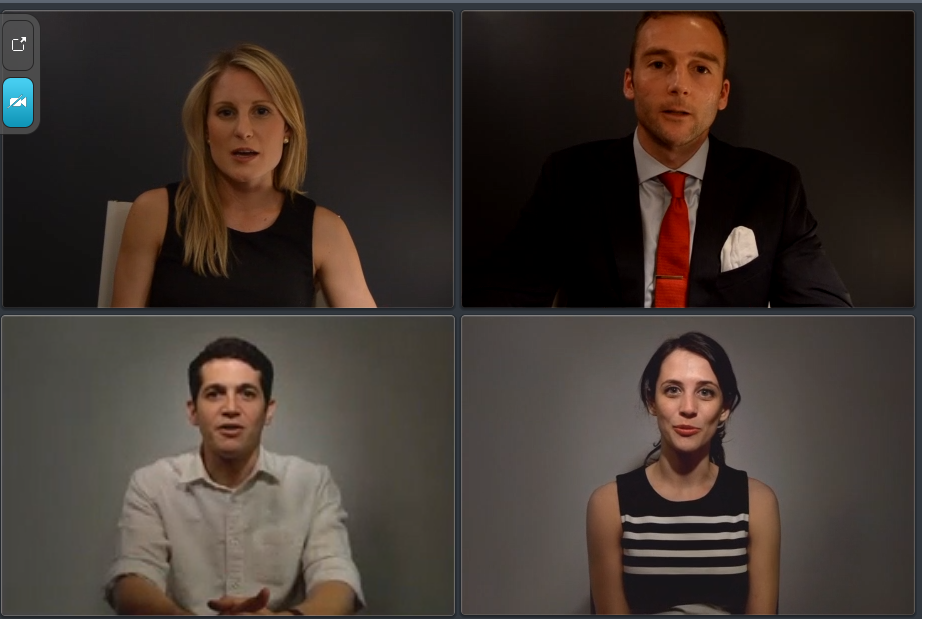

	allEqualQuarters	all equal quarters	All equal

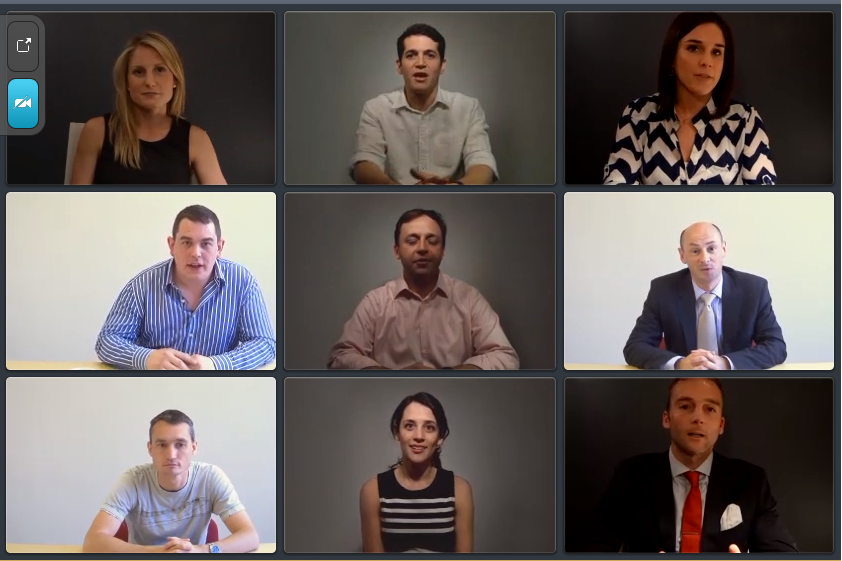

	allEqualNinths	all equal ninths	All equal

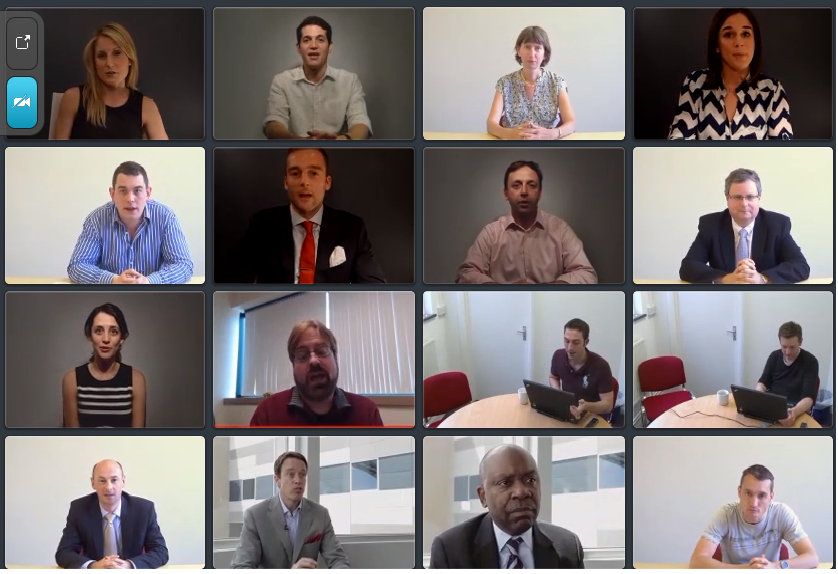

	allEqualSixteenths	all equal sixteenths	All equal

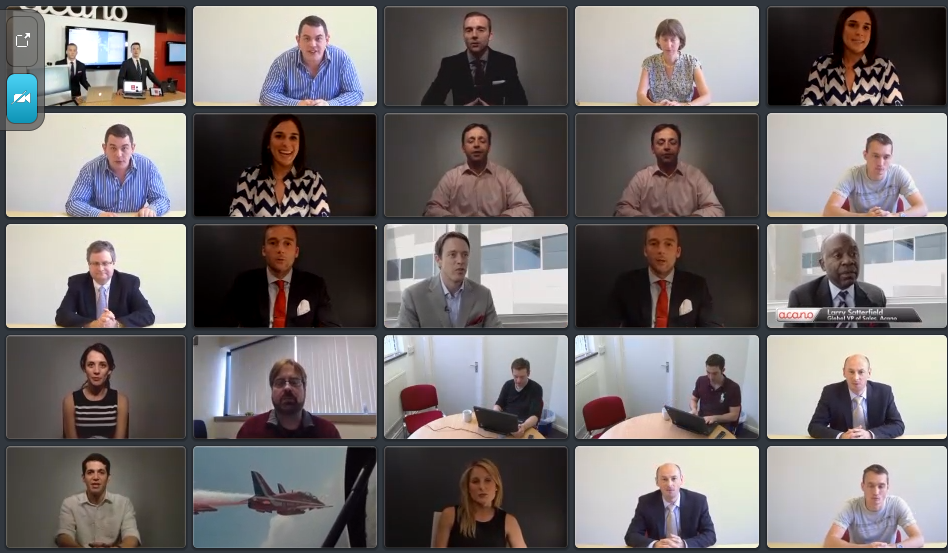

	allEqualTwentyFifths	all equal twenty fifths	All equal

* Note: If you have selected Speaker large but see the Speaker only layout without the overlaid small panes (Picture-In-Picture, PIPs), then increase the receive and transmit bandwidth settings to 512kbs and apply to live calls. You should see PIPs appear, if not then your local video display window size may be too small, in which case the PIPs won’t be shown.
